SURVEY VESSEL SPEC SHEET
'POLECAT II'

RAPID DEPLOYMENT

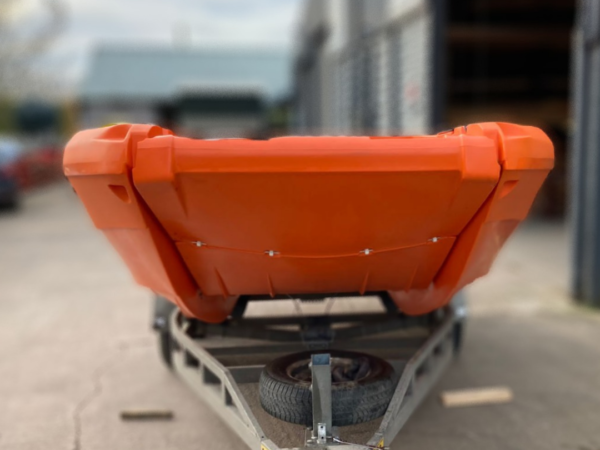

Our dedicated survey vessel Polecat II, a Pioner Multi III, is road transportable to facilitate a quick response and rapid mobilisation. Polecat II is coded for 20 miles from safe haven and our experienced team include IHO CAT A Hydrographic Surveyors who are also STCW Personal Survival Techniques and first aid trained.

VESSEL SPECIFICATION

Type: Pioner Multi III
LOA: 5.3m
Beam: 2.15m
Draft: 0.3m
Propulsion: 1 of Tohatsu 35Hp (4 Stroke)
Coding: MCA – Category 4

• DOWNLOAD

SENSORS

Polecat II is custom fitted with multiple sensors including:

• Multibeam: R2Sonic 2020/2024 & Teledyne BlueView BV5000
• Single beam: Reson TC2144 Hull Mounted Dual Frequency Transducer
• Mobile Mapping: Leica Pegasus II Ultimate
• Positioning: Trimble R12 GNSS RTK
• Motion Compensation: Applanix SurfMaster
• Geophysical: sub-bottom profiling and magnetometry systems
• Side Scan Sonar: Edgetech 4125i
• Sound Velocity: Valeport MiniSVS & Odom Digibar Pro
• Integrated Navigation System: BeamworX, HyPack and HySweep
• Van Veen Grab Sediment Sampling Systems
